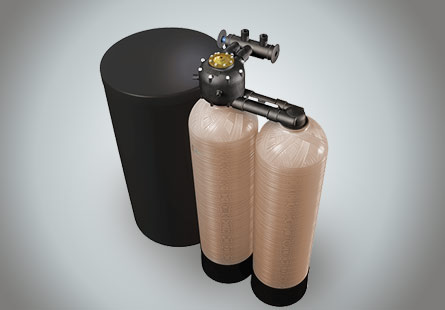

U - Series Softeners

SEION U Flow Softeners incorporate the proven technique of counter flow regeneration, which produces treated water with low-residual hardness throughout the cycle.SEION U Flow Softeners are designed to suit small and medium sized industries.
A strongly acidic cation exchanger in sodium form is used to exchanger in sodium ions for hardness forming calcium and magnesium, and thus produce soft water. At the end of the each service cycle, the ion exchanger is regenerate with sodium chloride solution, after which the unit is ready for the next service cycle.The unit can be easily assembled and does not require any elaborate foundation.
SEION Packaged U flow Softeners are available in different sizes, as given in the Technical data, and also now are available in FRP module.

Advantages :

  • Consistent treated-water quality.
  • Lower regeneration cost.
  • Simple to install and operate.
  • Low cost of maintenance.
  • Incorporates the high-capacity.
  • Bread-type ion exchanger.
  • Incomparable for its stability and long life and long life.
  • Three years long subjected warranty.

Applications :

  • Boiler feed.
  • Textile processing.
  • Beverage manufacture.
  • Cooling-water make-up.
  • Hospitals, hotels, laundry and Air-conditioning plants.

Specifications :

  • One mild-steel pressure vessel, complete with internal distribution and collecting system, painted externally with a protective coat of red-oxide primer and internally and internally with bituminous paint.
  • One charge of ion exchanger.
  • One plastic salt saturation tank.
  • One set of frontal pipe-work.
  • Complete with valves and one hydraulic ejector.
  • One hardness test-kit.
  • Optional:- multi port valve design.
Model

Flow Rate

Working pressure

Output Per Regene-ration

Treated Water Hardness

Salt Per  Regen- eration

Max. Min. Max. Min.
 Â  m3/hr m3/hr kg/cm2 kg/cm2 m3 ppm/Caco3 kgs.
UFS-200

UFS-300

UFS-380

UFS-500

UFS-600		 1.8

3.0

5.0

8.5

12.5		 0.2

0.4

0.5

0.9

1.3		 3.5

3.5

3.5

3.5

3.5		 1.7

1.7

1.7

1.7

1.7		 9.0

17.0

26.0

48.0

70.0		 <5

<5

<5

<5

<5		 3.0

5.0

9.5

18.0

27.0

Note :

  • Raw water should be free from turbidity, free chlorine organic matter, heavy metals and oil should be at ambient temperature.
  • The output per regeneration and the treated water quality depends on the analysis of inlet water.
